Chapter 3 Input data

The diemr package uses a consise genome representation. Let’s have a small dataset of three markers genotyped for seven individuals.

S0011222
S1210001
S02221U0

The genotypes encoded as 0 represent homozygotes for an allele attributed to barrier side A, 1 are heterozygous genotypes, 2 are homozygotes for another allele, attributed to barrier side B, and U (symbol “_” is also allowed) represents an unknown state or a third (fourth) allele. The power of diem lies in the assurance that the user does not need to determine the true assignment to barrier sides A and B before the analysis and the specific genotypes encoded as 0 and 2 respectively can be arbitrary.

The leading S on each line of the input file is ensures that the marker genotypes are read in as a string on all operating systems. The S is dropped during import of the genotypes, and the dataset is imported as a character matrix of all sites.

3.1 Multiple compartments with different ploidies

Some genomic compartments differ between individuals in their ploidy. For example, markers located on chromosome X in mammals will be diploid in females, but haploid in males. Ploidy differences between individuals influence calculation of the hybrid index, which in turn has an effect on the diem analysis.

To set up the diem analysis with multiple compartments, the markers with different individual ploidies must be stored in separate files. The file analysed in the Quick start chapter could contain markers from autosomes and an additional file will contain markers from an X chromosome, with individuals 2 and 6 being males. The respective ploidies for the second genomic compartment will be c(2, 1, 2, 2, 2, 1, 2).

Arguments files and ploidy will need to reflect the information, taking care that the order of filenames corresponds to the order of elements in the list of ploidies. diem cannot check that the order of the elements is correct, only that the information is in the correct format.

filepaths2 <- c(system.file("extdata", "data7x3.txt", package = "diemr"),
                system.file("extdata", "data7x10.txt", package = "diemr"))

ploidies2 <- list(rep(2, 7),
                  c(2, 1, 2, 2, 2, 1, 2))

CheckDiemFormat(files = filepaths2,
                ChosenInds = samples,
                ploidy = ploidies2)
# File check passed: TRUE
# Ploidy check passed: TRUE

# Set random seed for repeatibility of null polarities (optional)
set.seed(39583782)

# Run diem with verbose = TRUE to store hybrid indices with ploidy-aware allele counts
res2 <- diem(files = filepaths2,
             ploidy = ploidies2,
             markerPolarity = FALSE,
             ChosenInds = samples,
             nCores = 1,
             verbose = TRUE)

Plotting polarised genomes from multiple compartments requires separate import of the compartment data. The polarities in the res2$markerPolarity element are combined across all compartments, and extracting them requires knowledge of the number of markers in each compartment. Alternatively, the marker polarities from each compartment can be extracted from the list in the res2$PolarityChanges element.

# Import each compartment into a list
genotypes2 <- list(importPolarized(file = filepaths2[1],
                       changePolarity = res2$markerPolarity[1:3],
                       ChosenInds = samples),
                  importPolarized(file = filepaths2[2],
                       changePolarity = res2$markerPolarity[4:13],
                       ChosenInds = samples))

# Bind compartment genotypes into one matrix
genotypes2 <- Reduce(cbind, genotypes2)

# Load individual hybrid indices from a stored file
h2 <- unlist(read.table("diagnostics/HIwithOptimalPolarities.txt"))

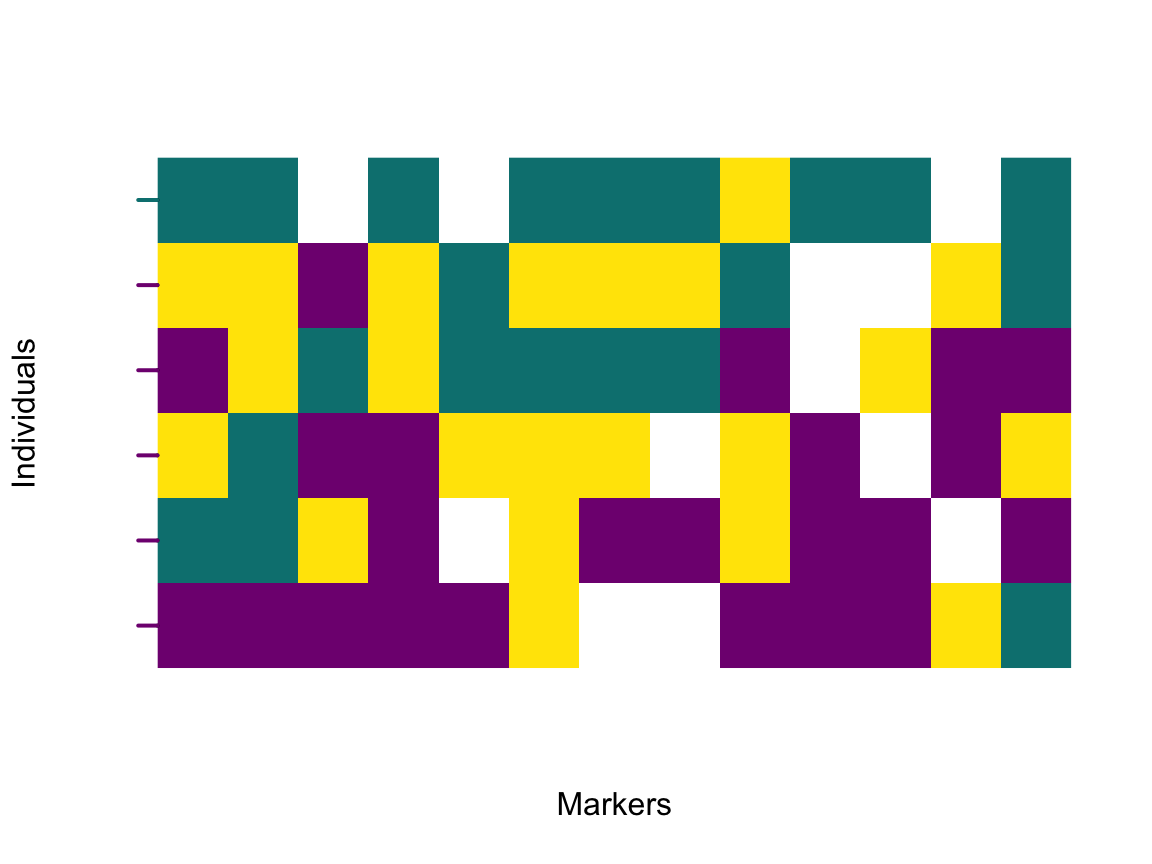

# Plot the polarised genotypes
plotPolarized(genotypes = genotypes2,
              HI = h2[samples])
